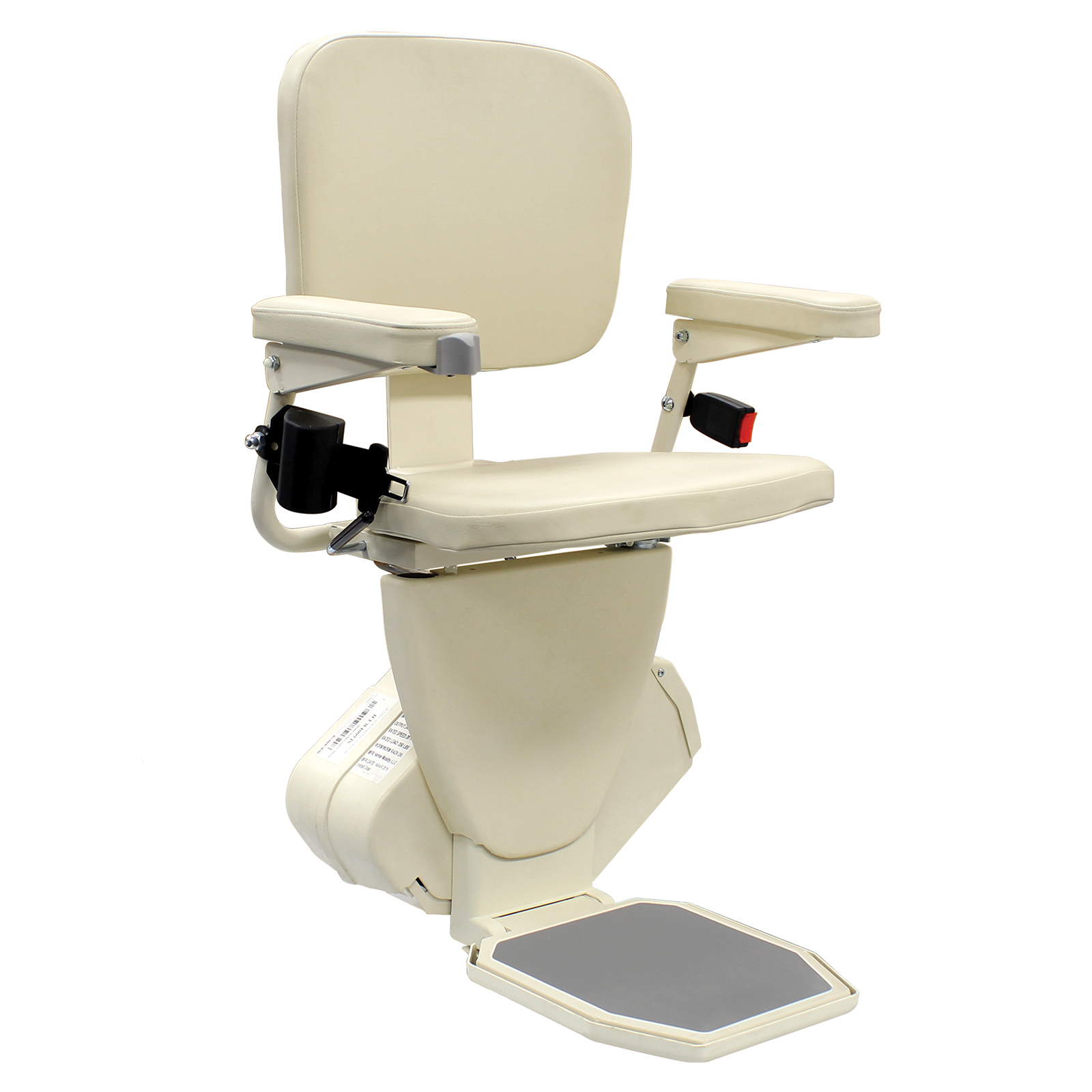

AmeriGlide Rave Stair Lift

Authorized AmeriGlide Dealer

AmeriGlide Rave Stair Lift
Product Review
(0)
(0)
Additional Images

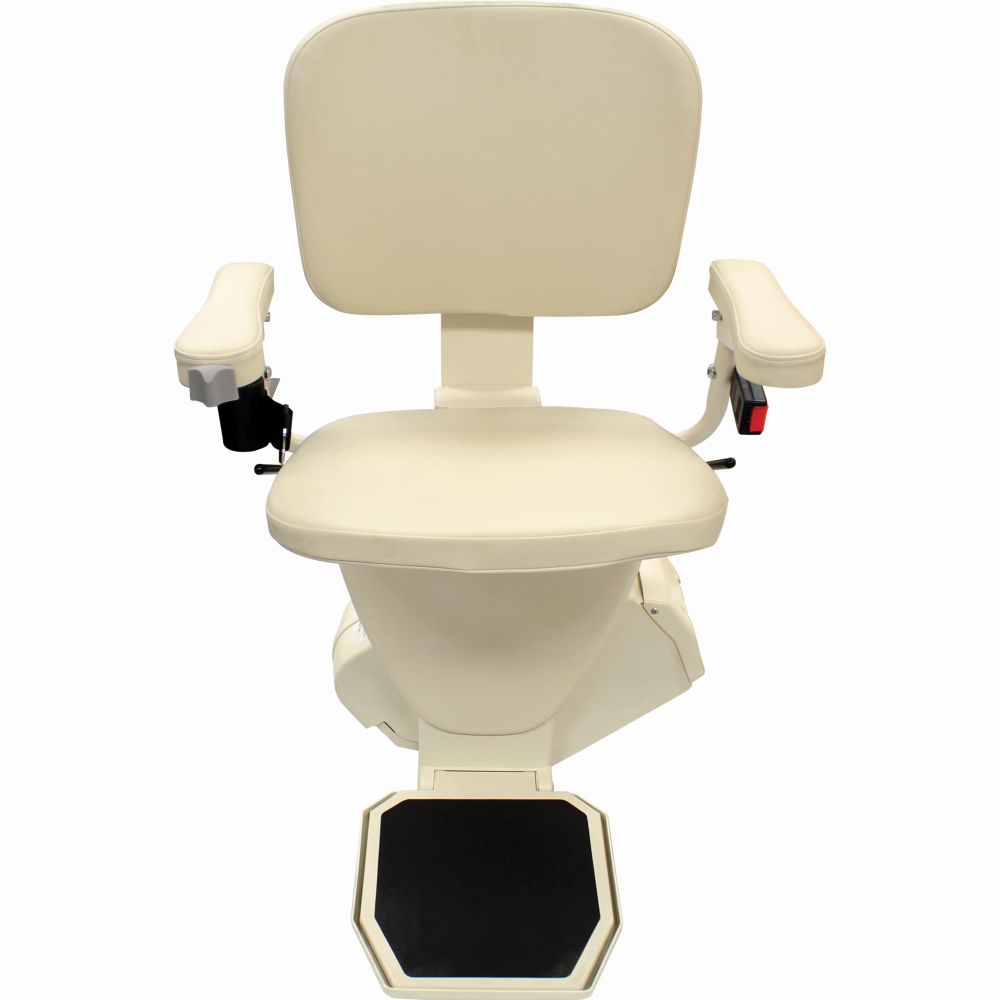

  • Showing Front On

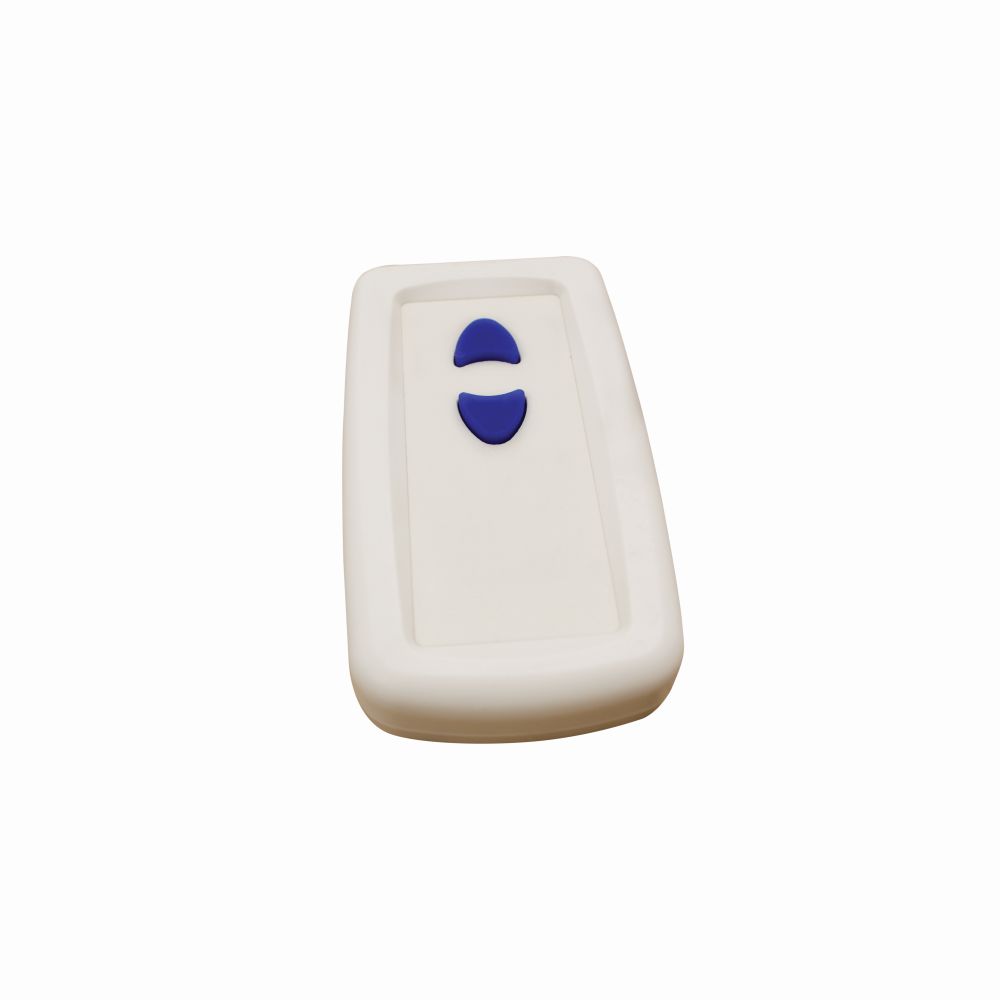

  • Wireless Remote
$2,195.00
+Shipping & Handling

instant coupon

On Sale!

Normally $2,395.00

Ends 1/7/25

Product Box Top

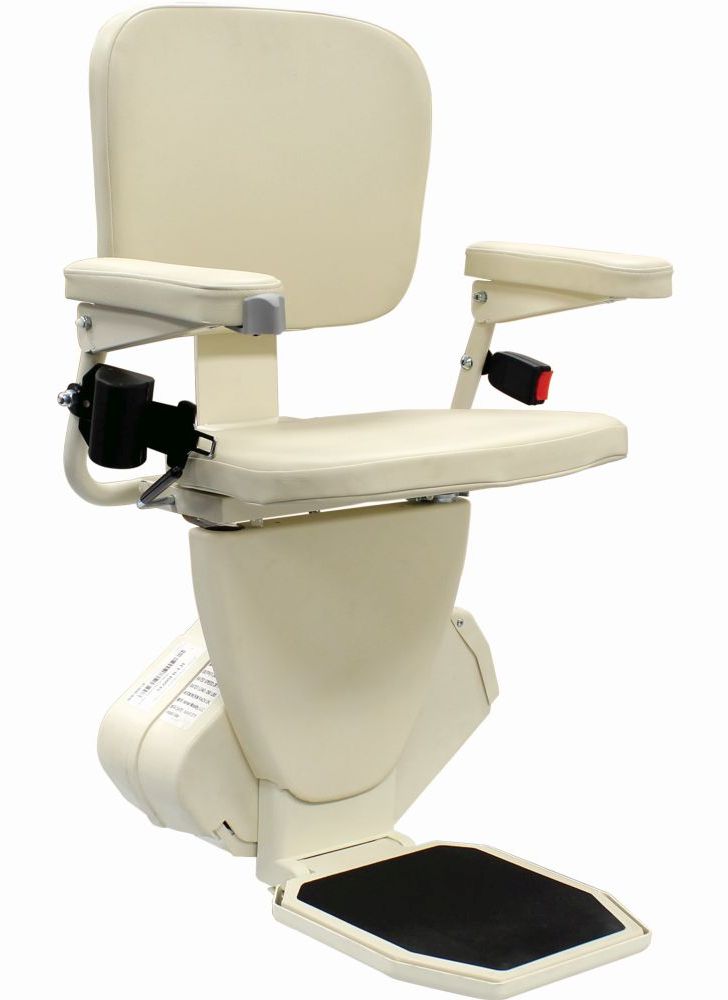

The AmeriGlide Rave is an ultra-compact stair lift designed to make restoring accessibility to your multi-level home as convenient and easy as possible! Homeowners with exceptionally narrow stair cases will love the ultra-thin design of this stair lift. The lift unit takes up only slightly more than 11 inches when folded, allowing able-bodied housemates and guests optimal access to the stairs. The AmeriGlide Rave is built for durability, with a tough all-metal case construction that withstands normal wear-and-tear far better than other comparable stair lift brands. The powerful worm-rack system can safely transport up to 350 pounds of user weight, and an adjustable-height padded seat with durable folding arms ensures that you will remain comfortable during transit - the seat measures in at 19.5 inches wide and 14 inches deep.

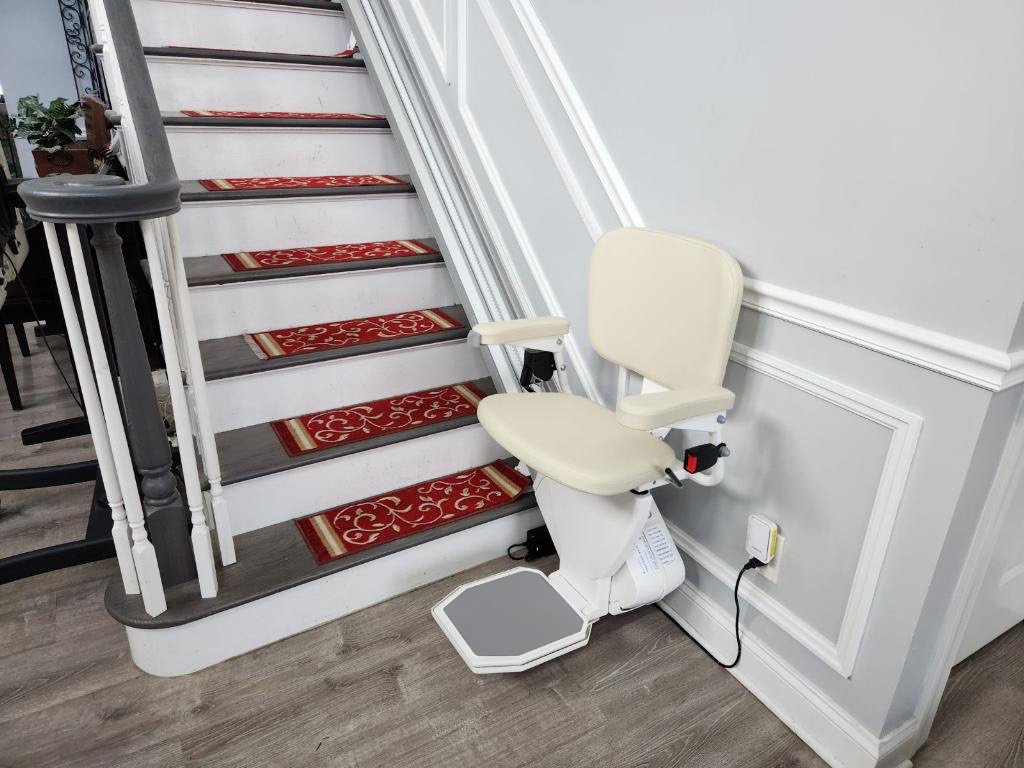

The AmeriGlide Rave differs from many of our competitors' stair lift units in that the track attaches to the stairs themselves rather than the wall, and every point of contact uses a single bracket, making installation easier on homeowners and handymen. The Rave is compatible with any standard household power outlet, and the battery that powers the unit charges at the top or bottom of the track, providing a reserve of power that keeps your stair lift going even in the event of a power outage. An arm-mounted operation switch is included as a standard feature, along with AmeriGlide's standard array of safety switches that prevent the lift from operating if an obstruction blocks your path. The seat swivels at the top, away from the steps, so the rider can safely exit or enter the stair lift.

Best of all, the AmeriGlide Rave lifts are assembled in the USA, which means quality you can depend on.

Stair lift users need a unit that is safe, comfortable, reliable, and easy to install. The AmeriGlide Rave satisfies all of your needs. To order, contact our mobility specialists today!

Drive TypePolymer Worm / Worm-Rack
Battery Backup (DC)Yes
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity350 lb
Max Track Length, Standard15.5'
Max Track Length, Optional70'
Track MaterialAluminum
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Seat Width19.5"
Unit Footprint, In Use22.5"
Unit Footprint, Parked11"
Track Footprint7"
Track Width4.875"
Call Stations IncludedYes - Wireless
Digital Diagnostics DisplayNo
Power Cord Lengths10' with the charger box in the middle
Key LockYes
  • Seat Style

    • No Image
      Soft Vinyl Seat, Taupe - Swivels At The Top Stop Only
      $0.00
  • Track Lengths Selection: 15' (180") is Standard *

    • No Image
      * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      $0.00
    • No Image
      15' (180") of Track
      $0.00
    • No Image
      Length in inches if Shorter than 180" (allow +6" for entry/exit)
      $0.00
    • No Image
      Custom Cut Charge in Factory (for shorter than 15')
      $90.00
    • No Image
      Custom Cut On Site Custom Cut On Site (You must select Installation below also)
      $145.00
  • Additional Track (Maximum 70' Including the 15' Standard Track)

    • No Image
      3' of Additional Track
      $411.00
    • No Image
      5' of Additional Track
      $571.00
    • No Image
      7'9" (93") of Additional Track
      $816.00
    • No Image
      Custom Pre-Cut Length (in inches) (this is just the cut, you must also select track above)
      $0.00
    • No Image
      Custom Cut Charge in Factory (cut only) (you must also select track above)
      $90.00
    • No Image
      Custom Cut On Site (this is just the cut, you must also select track above)(You must select Installation below also)
      $145.00
  • Bracket Length

    • No Image
      Standard
      $0.00
    • No Image
      Tall
      $99.00
  • Options

    • No Image
      Seat Belt
      $0.00
    • No Image
      Key Lock
      $164.00
    • No Image
      Power Swivel / Power Footrest
      $1,499.00
    • No Image
      Folding Rail - Left
      $1,595.00
    • No Image
      Folding Rail - Right
      $1,595.00
  • Call Stations

    • No Image
      Top & Bottom Call-Send Stations
      $0.00
  • Orientation (looking UP the staircase)

    • No Image
      The stair lift will be on the left
      $0.00
    • No Image
      The stair lift will be on the right
      $0.00
  • Installation

    • No Image
      NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
      $0.00
    • No Image
      Self Installation
      $0.00
    • No Image
      Nationwide Installation
      $599.00
    • No Image
      Nationwide Installation and Measurement Service
      $749.00
    • No Image
      Double Stair Lift Installation Service - Per Stair Lift
      $437.50
    • No Image
      Stair Lift Removal and Disposal
      $499.00
    • No Image
      Additional Charge for Installation in the States of: New York, Massachusetts, and Illinois
      $150.00
  • Installation Permit

    • No Image
      Permit (Required in Kentucky for EACH item being installed)
      $87.50
    • No Image
      Permit & Inspection (Required in Georgia. Additional units incur additional fee.)
      $250.00
    • No Image
      Permit & Inspection (Required in Alabama. Additional units incur additional fee.)
      $300.00
  • Installation Special Cases

    • No Image
      Installation On Concrete, Steel, or Tile Stairs
      $300.00
    • No Image
      Installation In Remote or Limited Access Location
      $345.00
  • Measurements

    • No Image
      Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      $0.00
    • No Image
      1. Overall length
      $0.00
    • No Image
      2. Top stair to bottom stair
      $0.00
    • No Image
      3. Staircase width
      $0.00
    • No Image
      4. Bottom clearance
      $0.00
    • No Image
      5. Rise of one step
      $0.00
    • No Image
      6. Tread of one step
      $0.00
    • No Image
      7. Diagonal
      $0.00
    • No Image
      8. Door at the top
      $0.00
    • No Image
      Need help measuring? Print out the "How to Measure" worksheet.
      $0.00
  • Warehouse Pickup

    • No Image
      Pickup Unit from Raleigh Warehouse
      $19.99
