Plug and play simple installation makes installation easy and can be done in half the time as it takes to install other dumbwaiters. The QuickServe II uses a rack and pinion drive so there are no cables, chains, or drums to install. The entire motor and electronics assembly comes pre-assembled on the lower section of the track. Major features include:
- Rack and pinion drive
- No slack cable lock-ups
- Battery operated
- Fast and easy installation – plug and play
- Aluminum rail instead of steel T-rail
- No separate machine room required
- No remote mounted controller
- On board diagnostic troubleshooting LED light
- 20" Wide x 20" Deep x 30" High – 200 lbs capacity
- 24" Wide x 24" Deep x 30" High – 200 lbs capacity
- 30" Wide x 30" Deep x 36" High – 275 lbs capacity
- Optional stainless steel car
- Warranty 5 years on motor and gear, and 2 years on all other parts
| Max Travel - Standard | 10' |
| Max Travel - Optional | 30' |
| Car Size - Standard | 20Wx20Dx30H or 24Wx24Dx30H |
| Car Size - Optional | 30Wx30Dx36H |
| Stops - Standard | 2 |
| Stops - Optional | 3 or 4 |
| Weight Capacity - Standard | 200 |
| Weight Capacity - Optional | 275 |
| Stainless Steel Panel Option | Yes |
| Hardwood Door Option | Yes |
| Straight Through Car Option | Yes |
| 90° Car Option | Yes |
Stops
- 2 Stops$0.00
- 3 Stops$858.00
- 4 Stops$1,422.00
Car Door Placement (in reference to the track)
Front Entry$0.00
Left Side Entry$0.00
Right Side Entry$0.00
Pass Through$643.00
90 Degree Left Side$786.00
90 Degree Right Side$786.00
Car Dimensions
- 20"W x 20"D x 30"H (200 LB Capacity)$0.00
- 24"W x 24"D x 30"H (200 LB Capacity)$715.00
- 30"W x 30" D x 36"H (275 LB Capacity)$1,215.00
- Custom Cab Size$1,786.00
Car Material
- Standard Coated Steel Panels (any size)$0.00
- Stainless Steel Panels Must Match Car Dimensions Above$0.00
- Stainless Steel 20"W x 20"D x 30"H$2,429.00
- Stainless Steel 24"W x 24"D x 30"H$2,715.00
- Stainless Steel 30"W x 30" D x 36"H$3,286.00
- Stainless Steel Custom Size$4,000.00
Car Shelf
- Up to 4 Total$0.00
- No Optional Car Shelf$0.00
- Adjustable Wire Rack Car Shelf$143.00
- Sliding Shelf$500.00
- Metal Powder Coated Shelf$215.00
- Stainless Steel Car Shelf$643.00

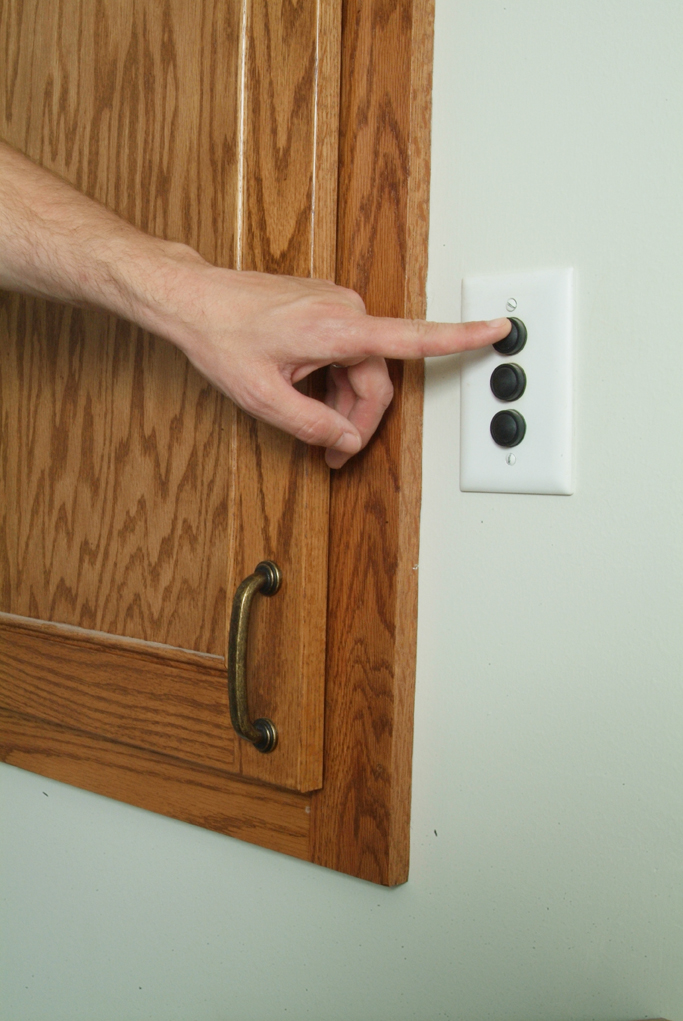

Call/Send Controls
- 1 RF Call Station Per Stop$0.00
- Key Lock on RF Call Station$72.00
- Car Here Indicator on RF Call Station$143.00
First Landing Door Locations
- Front$0.00
- Rear$0.00
- Left Side$0.00
- Right Side$0.00
Second Landing Door Locations
- Front$0.00
- Rear$0.00
- Left Side$0.00
- Right Side$0.00
Third Landing Door Locations (if 3 or 4 Stop)
- None$0.00
- Front$0.00
- Rear$0.00
- Left Side$0.00
- Right Side$0.00
Fourth Landing Door Locations (if 4 Stop)
- None$0.00
- Front$0.00
- Rear$0.00
- Left Side$0.00
- Right Side$0.00
First Landing Hoistway Door Swing
- Door Hinged on the Right$0.00
- Door Hinged on the Left$0.00
Second Landing Hoistway Door Swing
- Door Hinged on the Right$0.00
- Door Hinged on the Left$0.00
Third Landing Hoistway Door Swing (if 3 or 4 Stop)
- No Third Stop$0.00
- Door Hinged on the Right$0.00
- Door Hinged on the Left$0.00
Fourth Landing Hoistway Door Swing (if 4 Stop)
- No Fourth Stop$0.00
- Door Hinged on the Right$0.00
- Door Hinged on the Left$0.00
Additional Options
- Automatic Car Lighting$108.00
- Automatic Homing$429.00
- Select Landing for Automatic Homing (if selected above, bottom is #1)$0.00
RDI Interlock
- RDI Interlocks (1 per Stop Included)$0.00
- NOTE: if any stop has more than one access opening, order additional Interlocks$0.00
- Additional RDI Interlocks$429.00
- Upgrade RDI to Commercial Interlock (per Interlock)$358.00
Track
- 10' of Extruded Aluminum Track Included$0.00
- Extra Track Per Foot (Over 10')$65.00
Hoistway/Access Doors
- No Optional Hoistway Doors$0.00
- Unfinished Poplar Hoistway Door$500.00
- Unfinished Maple Hoistway Door$715.00
- Machine Access Door (20" x 20") Includes RDI Interlock - Unfinished Poplar$929.00
- Machine Access Door (20" x 20") Includes RDI Interlock - Unfinished Maple$1,143.00
Dumbwaiter Shipping
- Shipping to Nearest Freight Terminal/ Loading Dock In or Near Your Zip Code (lower 48)$0.00
- Call for Price to ship to Alaska or Hawaii$0.00
Optional Fire Proof Landing and Machine Access Doors
- Stainless Steel (#4 finish) Swing Door - 1.5 Hour Fire Rated$0.00
- 20" W x 30" H - Right Hand$1,453.00
- 20" W x 30" H - Left Hand$1,453.00
- 24" W x 30" H - Right Hand$1,453.00
- 24" W x 30" H - Left Hand$1,453.00
- 30" W x 36" H - Right Hand$1,617.00
- 30" W x 36" H - Left Hand$1,617.00
- Machine Access Door$0.00
- 18" W x 18" H Stainless Steel - Right Hand$1,000.00
- 18" W x 18" H Stainless Steel - Left Hand$1,000.00
Mounting Surface For Optional Fire Proof Doors
- Dry Wall Mounted$0.00
- Masonry Wall Mounted$0.00
Crating and Shipping Preparation for Optional Fire Proof Doors
- No Optional Fire Proof Doors Ordered$0.00
- Up to 3 Doors$462.00
- Additional (per door) for Over 3 Doors (must select "Up to 3 Doors" also)$154.00
Freight for Optional Fire Proof Doors
- No Optional Fire Proof Doors Ordered$0.00
- Freight for Up to 3 Doors$1,001.00
- Freight for 4 Doors$1,077.00
- Freight for 5 Doors$1,154.00
- Freight for 6 or More Doors (call for quote)$0.00
- Call for Price to Ship Outside the Contiguous 48 US States$0.00
Delivery Option for Optional Fire Proof Doors
- Liftgate Service (if needed for doors at the delivery point)$0.00
